4' Skinny Corner Module

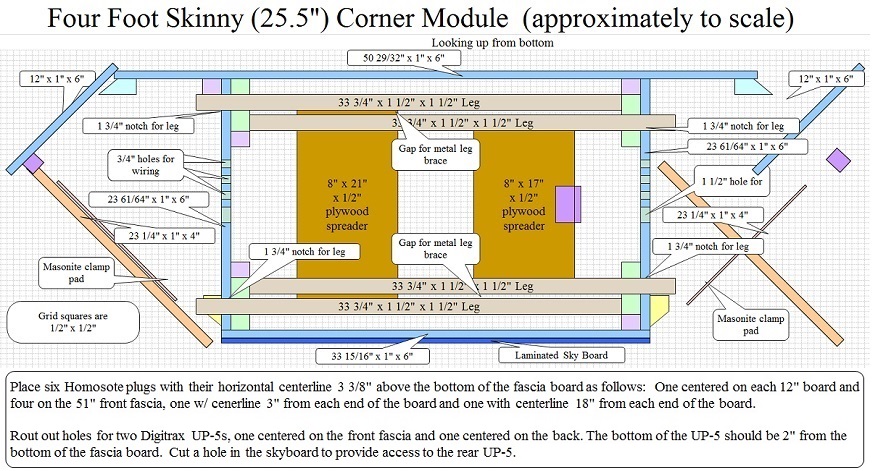

View Full Size Module Diagram
6' Standard Module
Cuts
#
Cuts
Board Length
21" x 4"23 1/4" w/ one 45° miter
21" x 4"4" glue block (for beneath rails)
21" x 6"12" w/ one 67.5° miter
11" x 6"33 15/16"
11" x 6"50 29/32" w/ two 67.5° miters
21" x 6"23 61/64" w/ notches for folding legs and holes for wires
42" x 2"34 1/2" OR 33 3/4" w/ 3/4" foam board on top
62" x 2"3 1/4" glue block
52" x 2"5 1/4" glue block
42" x 4"5" glue block & riser for leg hinges
62" x 4"3 1/4" glue block w/ one 45° miter
22" x 4"5 1/4" glue block w/ one 45° miter
12" x 4"15"
12" x 4"21 3/8" w/ two 45° miters
12" x 4"25 1/2"

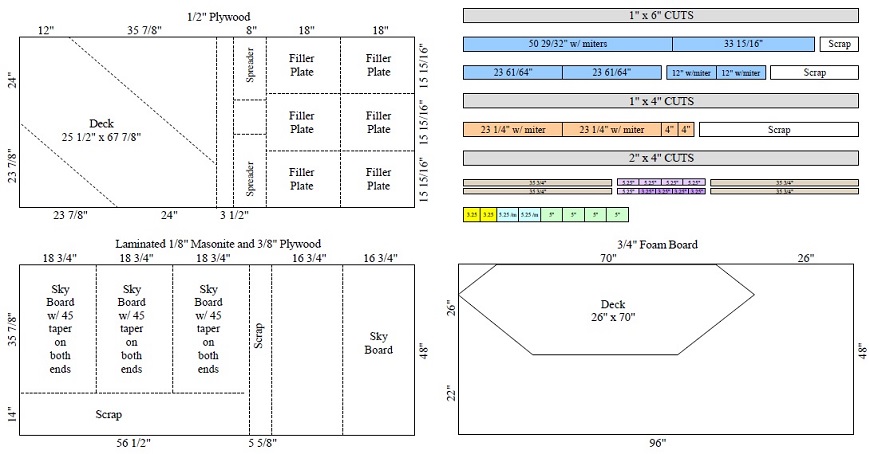

4' skinny corner module cuts
