4' Standard Corner Module

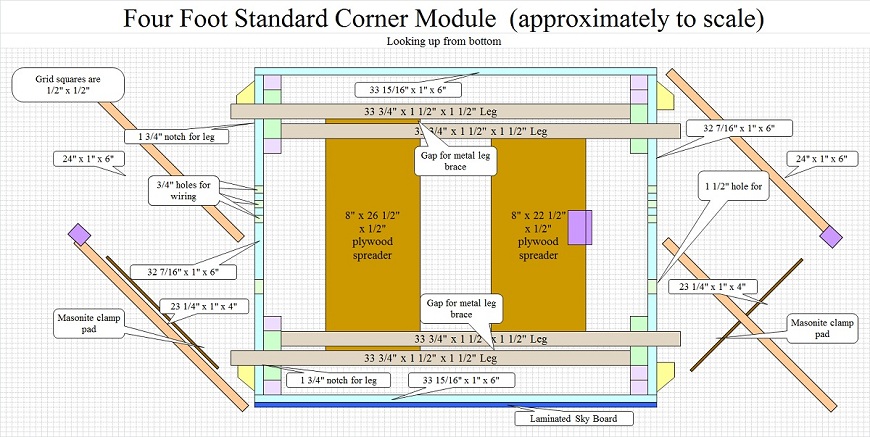

View Full Size Module Diagram
4' Standard Corner Module
Cuts
#
Cuts
Board Length
2 1" x 4" 24" w/ one 45° miter
2 1" x 4" 23 1/4" w/ one 45° miter
2 1" x 4" 4" glue block (for beneath rails)
2 1" x 6" 33 15/16"
2 1" x 6" 32 7/16" w/ notches for folding legs and holes for wires
4 2" x 2" 34 1/2" OR 33 3/4" w/ 3/4" foam board on top
4 2" x 2" 3 1/4" glue block
8 2" x 2" 5 1/4" glue block
4 2" x 4" 5" glue block & riser for leg hinges
4 2" x 4" 3 1/4" glue block w/ one 45° miter
1 1/2" ply 8" x 22 1/2"
1 1/2" ply 8" x 26 1/2"

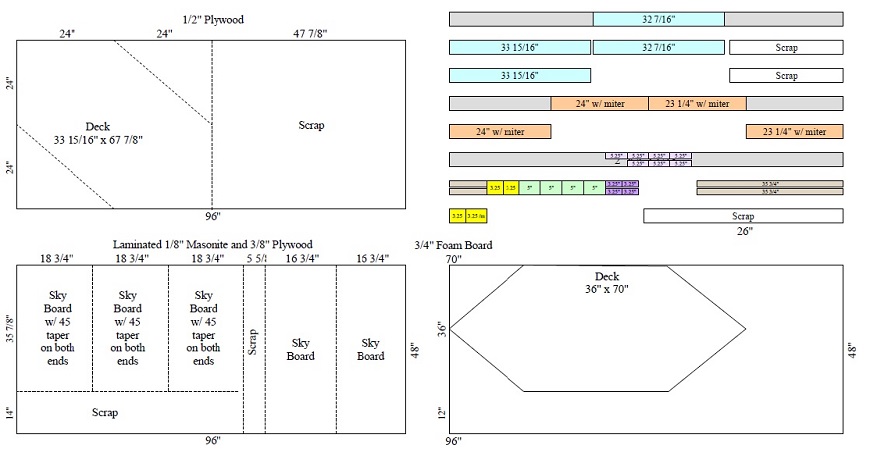

4' corder module cuts
