4' Loop Module

View Full Size Module Diagram
4' Loop Module

Approximate Costs

0.203/8" Plywood 4' x 8'$11.97$2.39
0.251/2" Plywood 4' x 8'$13.67$3.42
2.002" x 4" x 8'$3.12$6.24
2" x 2" x 8'$1.87$0.00
2.001" x 4" x 8'$3.92$7.84
1" x 6" x 8'$6.17$0.00
1.00misc hardware$25.00$25.00
0.33box 1 5/8" screws$4.40$1.47
0.33box 1 1/4" screws$4.40$1.47
1.00qt carpenter's glue$2.00$2.00
Total$64.50
Total w/ tax$69.98

Cuts

11" x 4"48"
11" x 4"47 1/4"
11" x 4"28 1/2"
11" x 4"22 1/2"
11" x 4"19" w/ custom tapers on both ends
11" x 4"5 1/4"
11" x 4"4" glue block (for beneath rails)
12" x 2"22 1/2"
42" x 2"36 1/2" OR 35 3/4" w/ 3/4" foam board on top
42" x 2"5 1/4" glue block
62" x 2"3 1/4" glue block
22" x 4"3 1/4" glue block
11/2" ply8" x 15"
11/2" ply8" x 19 1/2"

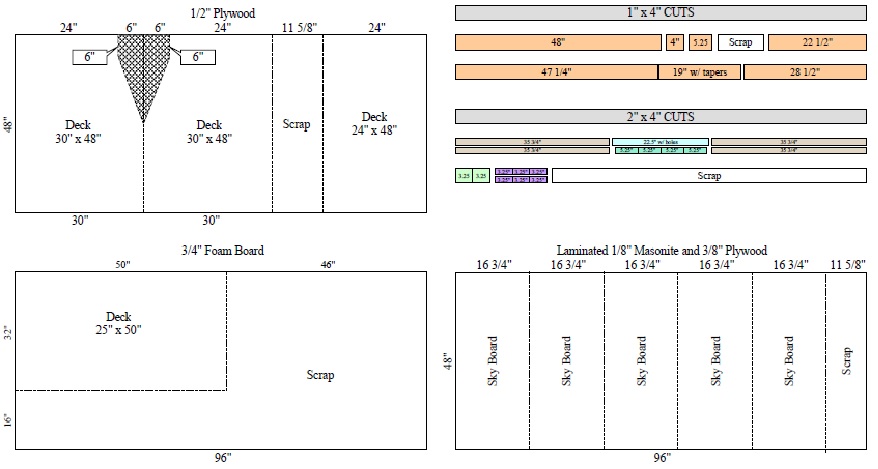

4' Loop Module Cuts
