6' Skinny Corner Module

View Full Size Module Diagram
6' Skinny Corner Module

Approximate Costs

1.003/4" Foam board 4' x 8'$12.98$12.98
0.331/8" Hardboard 4' x 8'$8.48$2.82
0.333/8" Plywood 4' x 8'$11.97$3.99
1.001/2" Plywood 4' x 8'$13.67$13.67
2.002" x 4" x 8'$3.12$6.24
2" x 2" x 8'$1.87$0.00
3.001" x 4" x 8'$3.92$11.76
1" x 6" x 8'$6.17$0.00
1.00misc hardware$25.00$25.00
0.50box 1 5/8" screws$4.40$2.20
0.25box 2" screws$4.40$1.10
0.50gal carpenter's glue$4.00$2.00
Total$81.76
Total w/ tax$88.71

Cuts

21" x 4"23 1/4" w/ one 45° miter
21" x 4"12" w/ one 67.5° miter
21" x 4"23 61/64" w/ holes for wires
11" x 4"84 5/6" w/ two 67.5° miters
11" x 4"67 7/8"
21" x 4"4" glue block (for beneath rails)
42" x 2"36 1/2" OR 35 3/4" w/ 3/4" foam board on top
22" x 2"23 61/64" w/ holes for wires
52" x 2"3 1/4" glue block
42" x 2"5 1/4" glue block
22" x 2"7 1/4" glue block
22" x 4"3 1/4" glue block
42" x 4"3 1/4" glue block w/ one 45° miter

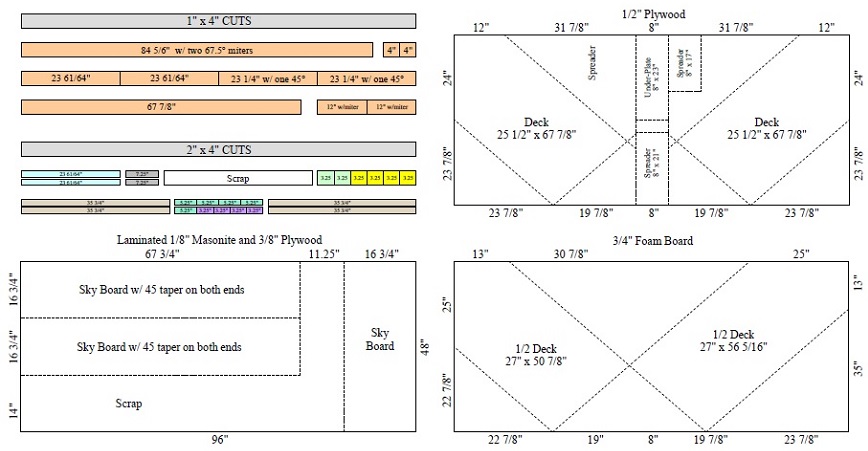

6' Skinny Corner Module Cuts
