8' Skinny Corner Module

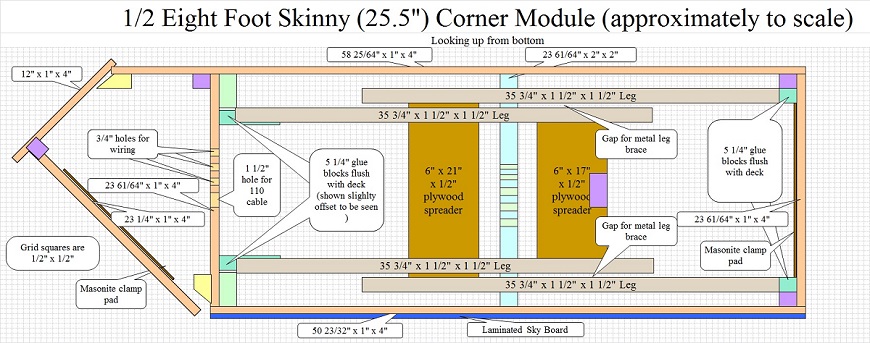

View Full Size Module Diagram
8' Skinny Corner Module

Approximate Costs

1.003/4" Foam board 4' x 8'$12.98$12.98
0.201/8" Hardboard 4' x 8'$8.48$1.70
0.203/8" Plywood 4' x 8'$11.97$2.39
0.501/2" Plywood 4' x 8'$13.67$6.83
2.002" x 4" x 8'$3.12$6.24
2" x 2" x 8'$1.87$0.00
3.001" x 4" x 8'$3.92$11.76
1" x 6" x 8'$6.17$0.00
1.00misc hardware$25.00$25.00
0.50box 1 5/8" screws$4.40$2.20
0.25box 2" screws$4.40$1.10
0.50gal carpenter's glue$4.00$2.00
Total$72.20
Total w/ tax$78.34

Cuts

11" x 4"23 1/4" w/ one 45° miter
11" x 4"12" w/ one 67.5° miter
11" x 4"58 25/64" w/ one 67.5° miter
11" x 4"50 23/32"
21" x 4"23 61/64" (one with holes for wires)
21" x 4"4" glue block (for beneath rails)
42" x 2"36 1/2" OR 35 3/4" w/ 3/4" foam board on top
12" x 2"23 61/64" (with holes for wires)
52" x 2"3 1/4" glue block
42" x 2"5 1/4" glue block
22" x 4"3 1/4" glue block
22" x 4"3 1/4" glue block w/ one 45° miter
11/2" ply8" x 17"
11/2" ply8" x 21"

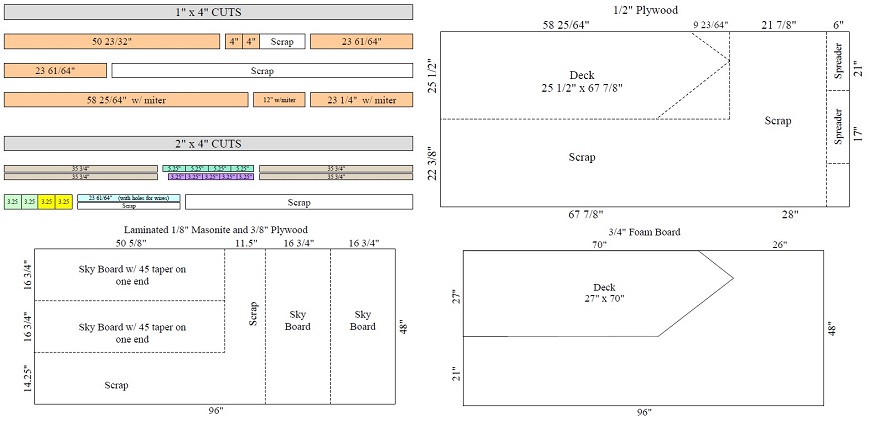

8' Skinny Corner Module Cuts
