8' Standard Module

View Full Size Module Diagram
8' Standard Module

Approximate Costs

1.003/4" Foam board 4' x 8'$12.98$12.98
0.331/8" Hardboard 4' x 8'$8.48$2.83
0.333/8" Plywood 4' x 8'$11.97$3.99
0.501/2" Plywood 4' x 8'$13.67$6.83
2.002" x 4" x 8'$3.12$6.24
2" x 2" x 8'$1.87$0.00
3.001" x 4" x 8'$3.92$11.76
1" x 6" x 8'$6.17$0.00
1.00misc hardware$25.00$25.00
0.50box 1 5/8" screws$4.40$2.20
0.25box 1 1/4" screws$4.40$1.10
1.00qt carpenter's glue$2.00$2.00
Total
Total w/ tax$81.30

Cuts

41" x 4"22 1/2"
21" x 4"96"
21" x 4"4" glue block (for beneath rails)
22" x 2"22 1/2"
42" x 2"36 1/2" OR 35 3/4" w/ 3/4" foam board on top
42" x 2"5 1/4" glue block
72" x 2"3 1/4" glue block
22" x 4"3 1/4" glue block
11/2" ply8" x 15 1/2"
11/2" ply8" x 19 1/2"

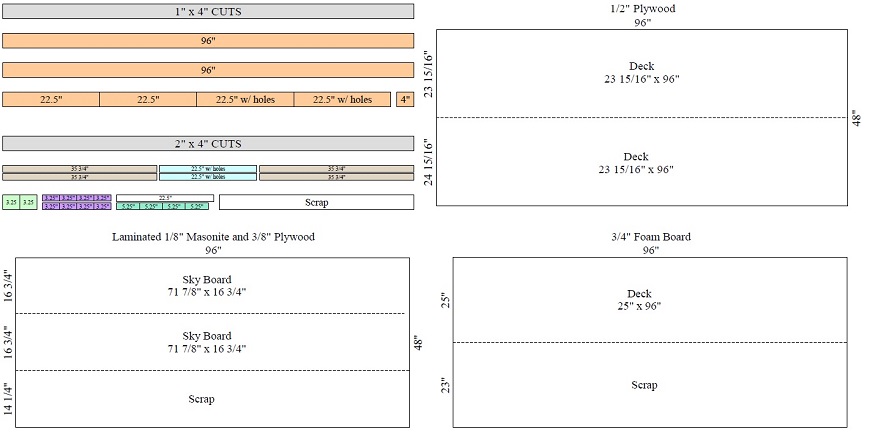

8' Standard Module Cuts
