Tulsa Neons N-Scale Model Railroad

Baseball

Diorama:	Mates with Beucher Farm to form junction assembly
Owner Name:	NEONS
Sponsor:	Razor
Date Built:	2005
Date Updated:
Status:	Active
Module Type:	4' Universal Flexi-Junction corner
Length:	4'
Width:	4'
Skyboard:	12" laminated

Track

Code	Brand	Turnouts	Crossovers	Passing Sidings	Yard Tracks	Industrial Spurs	Other Tracks
80	Atlas	5 peco long	none	none	none	none	none

Electrical

	Wire	Connector
Red (left)	12 gauge	PP-30
Red (right)	12 gauge	PP-30
Yellow	12 gauge	PP-30
Blue	12 gauge	PP-30

DCC Equipment:	Two UP-5s and a 4-way Loconet splitter
Powered Accessories:	Two Peco turnout actuators. A pair of wires can be connected to the accessory terminals of an idle power pack to power the actuators. The actuators are activated by three momentary DPDT toggle switches. One wall wart powers the two UP-5s

Designer	Carpentry	Track	Wiring	Scenery	Oklahoma Scene	Route 66 Scene	Prototype RR
Razor	Kroutter	Razor	Razor	Razor

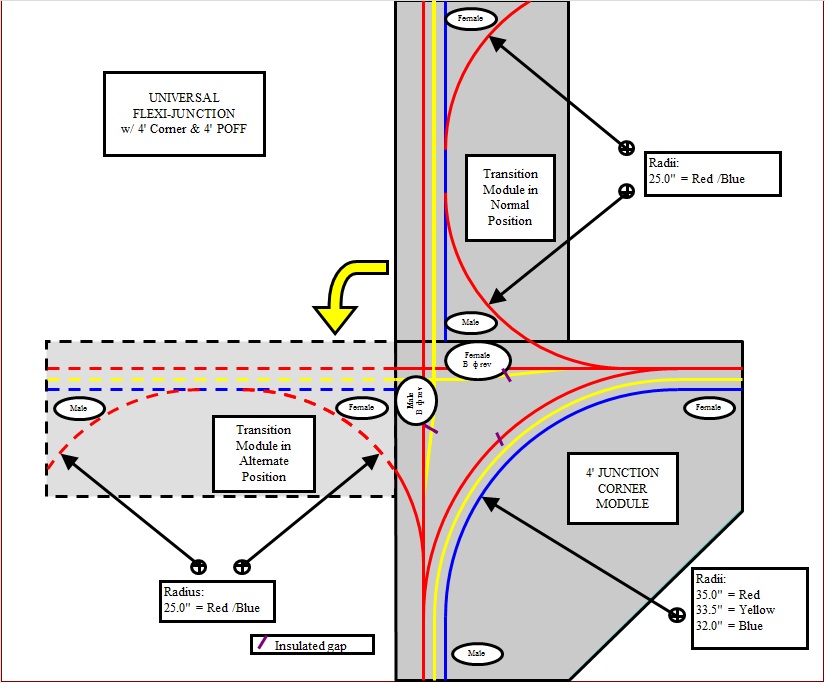

Track Plan

Sign Board

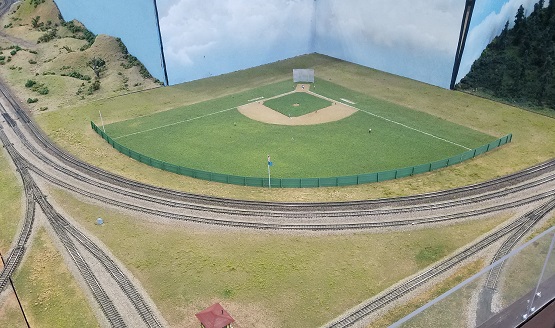

Every town has a ball park and our Oklahoma community is no different. Fitting nicely inside the junction between two railroads, the ballpark fence has advertising billboards covering its face and protects outfielders from straying too near the tracks as they chase long fly balls. Old Glory flies high on the flag pole just above the Oklahoma State flag, wafting in the breeze and indicating to batters that the wind is in their favor today. The town council has promised a new scoreboard for next season.

Description & History

The success of the joint N-Trak and N Scale Collector convention at Chantilly in 2004 convinced us we needed to take the step to DCC and become prepared to run the RED LINE ROUTE (RLR). In 2005 we designed and built our first junction and link module pair. Our junction module is a 4' square with junction connections incorporated so the module can be used on the left hand side or the right hand side, or it can be used as a normal 4' corner module. It connects to a transition module which is a standard 4' module that has a curve of the blue line in both directions to tie in the Red return line. It can be placed on either side of the junction to make it left hand or right hand. Thse modules can be used as a regular corner and POFF module anywhere in the layout if we're not linking to another club's layout.
