Football

Diorama:	Mates with Skeet Shoot to form junction assembly
Owner Name:	NEONS
Sponsor:	Razor
Date Built:	2006
Date Updated:
Status:	Active
Module Type:	4' Universal Flexi-Junction corner
Length:	4'
Width:	4'
Skyboard:	12" laminated

Track

Code	Brand	Turnouts	Crossovers	Passing Sidings	Yard Tracks	Industrial Spurs	Other Tracks
80	Atlas	5 peco long	none	none	none	none	none

Electrical

	Wire	Connector	110V
Red (left)	12 gauge	PP-30
Red (right)	12 gauge	PP-30
Yellow	12 gauge	PP-30
Blue	12 gauge	PP-30

DCC Equipment:	Two UP-5s and a 4-way Loconet splitter
Powered Accessories:	Two Peco turnout actuators. A pair of wires can be connected to the accessory terminals of an idle power pack to power the actuators. The actuators are activated by three momentary DPDT toggle switches. One wall wart powers the two UP-5s

Designer	Carpentry	Track	Wiring	Scenery	Oklahoma Scene	Route 66 Scene	Prototype RR
Razor	Kroutter	Razor	Razor	Razor

Track Plan

Sign Board

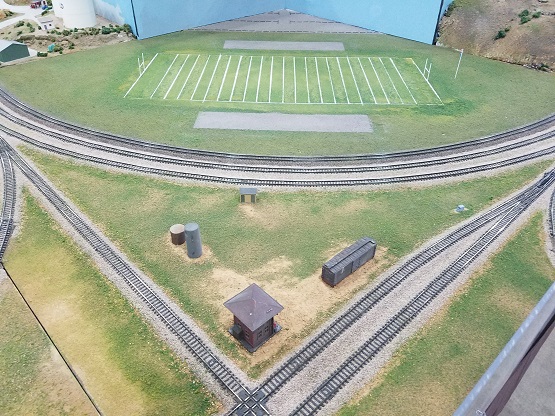

High School football is big in Oklahoma and our town's football field is being groomed and made ready for the 1957 season. Oklahoma is mostly rural, with small towns that are too far apart for consolidated school districts. These smaller schools play 8-man football as opposed to the 11-man version played at larger high schools. Prior to 1958, goal posts were the 'H' style and sat at the back of the end zone. Back then, running a post pattern could get your bell rung! Old Glory flies high on the flag pole, its 48 stars and 13 stripes flapping in the breeze just above the Oklahoma State flag.

Description & History

In 2006 we designed and built our second junction and link module pair. The Junction module, Football, is a 4' square with junction connections incorporated so the module can be used on the left hand side or the right hand side or it can be used as a normal 4' corner module. It connects to a link module, Skeet Shoot, which is a standard 4' module that has a curve off the blue line in both directions to tie in the red return line. It can be placed on either side of the junction to make it left hand or right hand. These modules can be used as a regular corner and POFF module anywhere in the layout if we're not linking to another club's layout. Turnouts to the spine are controlled by Peco actuators. Three momentary toggle switches are located at key positions on the fascia board. This Flex-junction design allow us to keep red line trains on our loop by simply toggling the switch, thereby allowing us to take a couple of laps on our own loop to shake down a train, pull bad order cars, etc. before heading out along the RLR. The football field is true to scale, 100 scale yards from goal line to goal line.
