Skeet Shoot

Diorama:	Mates with either side of Football for junction assembly
Owner Name:	NEONS
Sponsor:	Razor
Date Built:	2006
Date Updated:
Status:	Active
Module Type:	4' Universal Flexi-Junction Transition module / 4' standard module
Length:	4'
Width:	2'
Skyboard:	12" laminated and hinged to fold down

Track

Code	Brand	Turnouts	Crossovers	Passing Sidings	Yard Tracks	Industrial Spurs	Other Tracks
80	Atlas	2 peco long	none	none	none	none	none

Electrical

	Wire	Connector	110V
Red	12 gauge	PP-30	Yes
Yellow	12 gauge	PP-30	Yes
Blue	12 gauge	PP-30	Yes
Other

DCC Equipment:	none
Powered Accessories:	none

Designer	Carpentry	Track	Wiring	Scenery	Oklahoma Scene	Route 66 Scene	Prototype RR
Razor	Kroutter	Razor	Razor	Fearless Leader

Track Plan

Sign Board

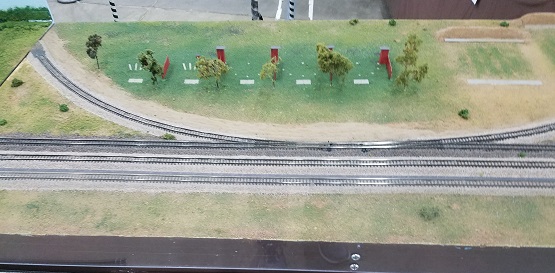

Few things are more sacred to Okies than their right to bear arms. A favorite sport down our way is skeet & trap shooting. Nestled in between two railroad spurs is the local shooting range. It has six shooting bays, launch towers and all the accessories. Load up, aim and holler "PULL!"

Description & History

As an junction transition module, Skeet Shoot can function as part of the junction assembly or can serve as a stand alone 4' module. When used in the junction assembly, it is part of the spine between two loops and therefore should not have a skyboard. To provide that flexibility, the skyboard is hinged and has three bolts that hold it in position. When the bolts are removed, the skyboard folds back and down out of view. A special curved joiner track is required to connect the active side of the curved blue line to its junction module.
