Tourist Trap

Diorama:
Owner Name:	NEONS
Sponsor:	Razor / Fearless Leader
Date Built:	2005
Date Updated:
Status:	Active
Module Type:	6' narrow inside corner module
Length:	102"
Width:	24"
Skyboard:	12" laminate

Track

Code	Brand	Turnouts	Crossovers	Passing Sidings	Yard Tracks	Industrial Spurs	Other Tracks
80	Atlas	3 Peco long	none	none	none	one - see below	none

Electrical

	Wire	Connector	110V
Red	12 gauge	PP-30
Yellow	12 gauge	PP-30
Blue	12 gauge	PP-30
Other			Yes

DCC Equipment:	none
Powered Accessories:	none

Designer	Carpentry	Track	Wiring	Scenery	Oklahoma Scene	Route 66 Scene	Prototype RR
Razor	Kroutter	Razor	Razor	Fearless Leader

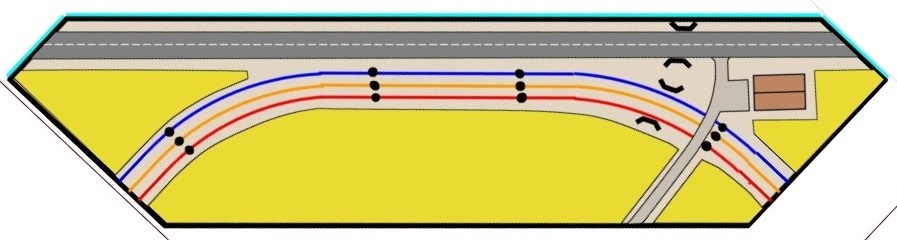

Track Plan

Sign Board

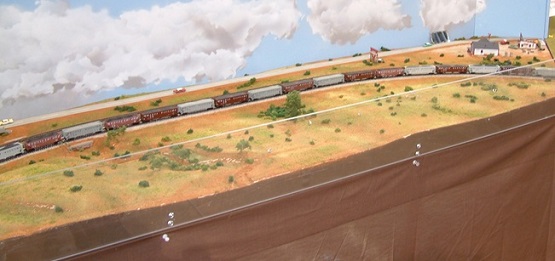

It's 1958 and U.S. Route 66 meanders across the western Oklahoma plains, paralleling the Rock Island Line tracks. There is a Conoco gas station and diner along side the road. Cattle graze on the sparse vegetation growing in the arid, red Oklahoma clay and an Oklahoma Highway Patrol car hides behind the large Conoco sign waiting for the next speeding vehicle with California plates.

Description & History

Most inside corners are a standard 4' corner with the sky-board on the other side. In order to have large radius turns, the tracks are at the back which require a 4' or 6' transition module on each end to swing the tracks to the rear. We took a different approach and built a one piece, 6' inside corner. This design allows for smooth, large radius turns (29" on the red line and 32" radius on the blue line) without the need for transition modules. The module is a standard 2' deep, but is 8 1/2' long from tip to tip. The narrow depth makes it easier to move the module through a standard width door. This module debuted at the 2005 OKC Train Show.
